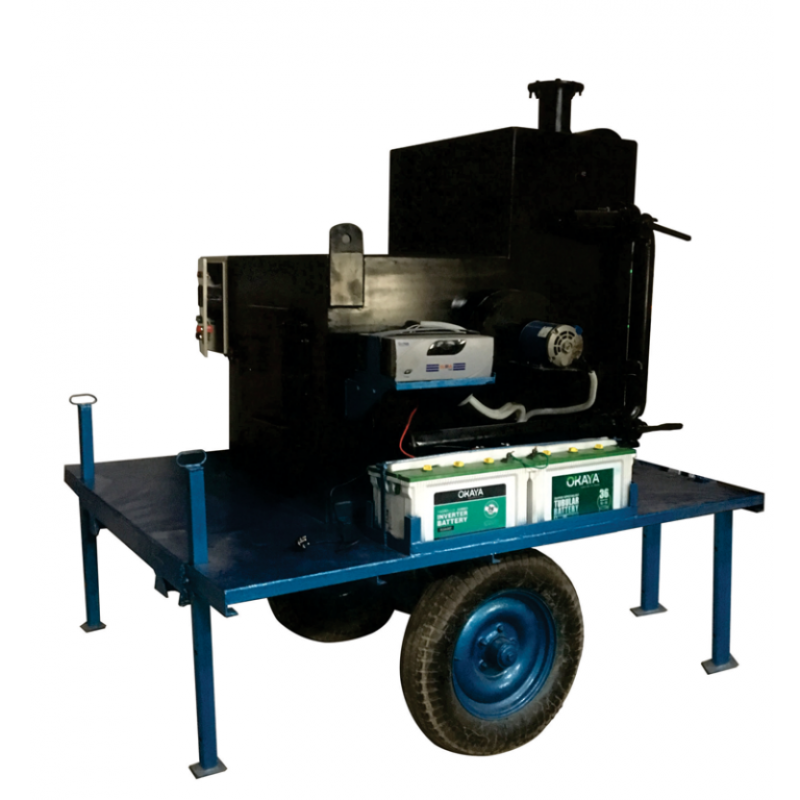

PORTABLE / MOBILE INCINERATOR : JKA-230PM

Portable / Mobile Incinerator is one of the most effective waste treatment equipment applicable for waste created by hospitals, medical, municipal, animal waste. This device is designed for quick and safe disposal as and where required. This system comprises of primary chamber, Secondary Chamber, Mobile Cart, Genset/Invertor Set & Automatic Burner.

The combustion chamber is well insulated. The incinerator reduces most combustible solid waste to nearly 2-3 percent by volume and 2.5 % by weight.

OPERATING PRINCIPAL :
The disposal of waste is based on the principal of incineration of the waste so as to destroy any degradable and infectious material and reduce it volume and mass without producing any type of pollution.

DESIGN:
The design is based on the guidelines set by Central Pollution Control Board (CPCB)-India and normally adopted by military installation all over the country and worldwide. The Efficient power is supplied by electricity as well as oil burners for larger installation.

SPECIFICATION:

• Heaters : Diesel operated automatic burners.
• Insulation : Multi layer insulation is done with combination of insulating bricks & silicon fiber insulating blanket to avoid any heat loss.
• Front Loading Type: It is portable/moveable in nature, which can easily place in a small space in a corner of building.
• Consisting of Dual Chamber: Works on thermal destruction using controlled combustion chamber combustion is controlled and provides enough heat to destroy the waste into disposable state.
• Door : Fitted with hinges & handle for proper sealing to avoid heat loss.
• Temperature : Temperature of Primary/Burning chamber upto 1050°C and for secondary chamber up to 1450°C.
• Portable : Whole unit is mounted on sturdy wheels.
• Capacity: 25, 50, 100, 150 Kg/Hr.
• Operates through generator set/invertor provided with incinerator on the same mobile cart.

or

• Burners are operated through diesel and other system runs on invertor ( which is charge again).

CONSTRUCTION:

• Combustion chamber is well insulated and has high temperature safe dozing and exhaust system.
• It has long and safe treatment of fuel gases for safe disposal through long stack.

FEATURES :

• The whole instrument can be towed to any destination in the field and can incinerator upto 6-8 hours.
• Later on it can be recharged

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement.
